Hospital Oxygen Generator
Product Overview
This medical Pressure Swing Adsorption (PSA) oxygen generator system extracts medical-grade oxygen directly from ambient air. Designed for continuous on-site operation, it supplies stable oxygen pipelines for hospitals, clinics, and emergency medical facilities.
The system integrates air compression, purification, adsorption separation, and pressure regulation into a modular skid. It operates automatically based on pipeline pressure demand, removing dependence on liquid oxygen bulk deliveries and high-pressure cylinder logistics.
-
![Large-Capacity Hospital PSA Oxygen Generator]()
Large-Capacity Hospital PSA Oxygen GeneratorThe Large-Capacity Hospital PSA (Pressure Swing Adsorption) Oxygen Generator is an on-site medical gas generation system engineered for continuous, high-volume oxygen supply in healthcare...read more -
![Hospital Central Oxygen System]()
Hospital Central Oxygen SystemThe Hospital Central Oxygen System delivers continuous, medical-grade oxygen (93% +/- 3% via PSA or >= 99.5% via liquid oxygen source) to clinical delivery points. Engineered for centralized...read more -
![Modular Hospital Oxygen Plant]()
Modular Hospital Oxygen PlantEngineered for continuous medical-grade oxygen supply, this modular PSA (Pressure Swing Adsorption) hospital oxygen plant is a fully integrated, skid-mounted or containerized system. It extracts...read more -

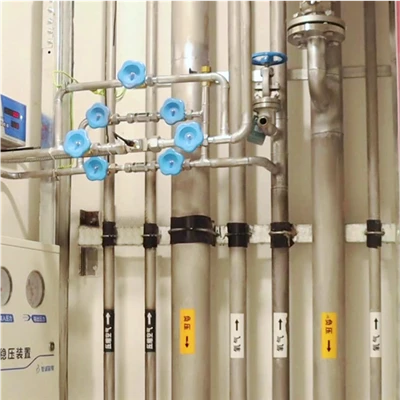

![Medical Oxygen Supply Station]()
Medical Oxygen Supply StationThe Medical Oxygen Supply Station is a turnkey PSA (Pressure Swing Adsorption) plant engineered for continuous hospital pipeline distribution and high-pressure cylinder filling. Utilizing Zeolite...read more -

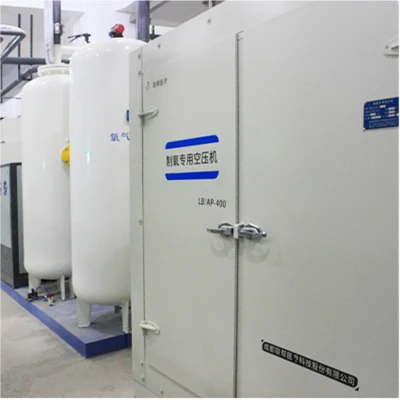

![On-Site Hospital Oxygen Plant]()
On-Site Hospital Oxygen PlantThe Medical PSA (Pressure Swing Adsorption) Oxygen Plant delivers a continuous, autonomous supply of medical-grade oxygen directly within healthcare facilities. By separating oxygen from ambient...read more -
![Central Oxygen Supply Uni]()
Central Oxygen Supply UniThe Central Oxygen Supply Unit regulates and delivers medical-grade oxygen from primary sources (such as liquid oxygen storage or high-pressure cylinder manifolds) to hospital distribution...read more
Dual-Train Redundancy Options:
Configured with dual compressors and parallel adsorption towers to eliminate single-point failure risks in critical care environments.
Automatic Purity Control (APC):
Real-time Zirconia oxygen analyzer continuously monitors purity; off-spec gas is automatically vented before reaching the medical pipeline.
Advanced Molecular Sieve Loading:
Utilizes high-density Zeolite Molecular Sieve (ZMS) with mechanical spring compaction to prevent powdering and channeling during cyclic pressure swings.
Oil-Free Screw Compression:
Medical-grade feed air compressors ensure zero hydrocarbon contamination in the feed stream prior to the PSA vessels.
Integrated Backup Manifold:
Seamlessly interfaces with secondary cylinder or liquid manifolds to satisfy NFPA 99 and ISO 7396 safety mandates.
Technical Specifications
|
Parameter |
Standard Specification |
Custom Range / Options |
|
Oxygen Purity |
93% +/- 3% (ISO 7396-1 compliant) |
Up to 95% |
|
Capacity (Flow Rate) |
5 Nm3/h to 200 Nm3/h (Single Skid) |
Scalable via parallel multi-skid setup |
|
Output Pressure |
0.4 – 0.8 MPa |
Up to 15 MPa (with booster for cylinder filling) |
|
Pressure Dew Point |
<= -40 degrees C |
Atmospheric dew point control |
|
Power Supply |
380V / 415V, 50Hz / 60Hz, 3-Phase |
Customized to local grid standards |
|
Control System |
PLC + Touch Screen HMI |
SCADA / BMS integration ready |
Applications
Central Hospital Pipeline Supply:
Primary oxygen source for wards, operating rooms, and Intensive Care Units (ICUs).
Emergency & Field Hospitals:
Containerized or skid-mounted units deployable for disaster relief and remote regions without liquid oxygen supply chains.
On-Site Cylinder Filling Stations:
Integrated high-pressure oxygen boosters for filling E/G-size cylinders for ambulances and outlying clinics.
Hyperbaric Oxygen Therapy (HBOT):
Stable high-flow delivery meeting medical hyperbaric chamber pressure requirements.
Customization Options
Containerized Turnkey Enclosures:
Fully installed inside ISO 20-foot or 40-foot insulated steel containers, complete with HVAC, lighting, and ventilation systems.
Skid Configuration:
Open-frame modular skids adapted to specific mechanical room dimensions and ceiling clearance limits.
Dual-Line Backup Systems:
Integrated reserve header systems complying with regional medical gas standards.
Voltage & Frequency Adaptation:
Electrical configurations tailored for 480V/60Hz, 400V/50Hz, or regional grids.
Manufacturing & Quality Control
Vessel Fabrication:
Pressure vessels built in-house adhering to ASME Section VIII or EN 13445 standards, utilizing automated submerged arc welding with 100% radiographic testing (RT) on seam welds.
Piping & Valving:
Medical-grade stainless steel (304/316L) piping, chemically cleaned and degreased for oxygen service, paired with pneumatic process valves rated for > 1,000,000 switching cycles.
Factory Acceptance Testing (FAT):
Every generator undergoes a 72-hour continuous full-load run test. Performance curves for flow, power draw, and purity stability are recorded and archived per serial number.
Certifications & Compliance
ISO 13485: Medical Devices Quality Management System certified.
>>
ISO 7396-1: Compliance for medical gas pipeline systems.
>>
CE Marked: Conforming to EU Medical Device and Pressure Equipment Directives (PED).
>>
ASME Certification: U-Stamp pressure vessel fabrication capability available upon request.
Corrosion Protection: Internal components sealed, desiccants added, and exterior surfaces coated with marine-grade epoxy primer.
Export Packaging: Fumigation-free plywood crates for component shipments; containerized units secured with twist-locks and weather-sealed access points.
Documentation Package: Includes Piping and Instrumentation Diagrams (P&ID), electrical schematics, FAT reports, material mill test certificates (MTRs), and operation manuals in English.
fAQ
Q: What is the power consumption per cubic meter of oxygen?
A: Power consumption ranges from 1.1 kWh to 1.4 kWh per Nm3 of medical oxygen produced, depending on the required output pressure and ambient temperature.
Q: What is the lifespan of the Zeolite Molecular Sieve (ZMS)?
A: Under proper feed air filtration (maintaining oil and moisture levels below manufacturer thresholds), the ZMS operational lifespan exceeds 8 to 10 years without requiring replacement.
Q: How does the system handle power outages?
A: The system features an Uninterruptible Power Supply (UPS) for the PLC control and monitoring instrumentation. Upon power restoration, the system executes an automated purge cycle and safe restart sequence.
Request a Quote
To receive a technical proposal and commercial quotation configured for your facility, please provide the following parameters:
Required oxygen flow rate (Nm3/h or L/min)
Required delivery pressure (MPa or Bar)
Ambient environmental conditions (altitude, max/min temperature, relative humidity)
Power supply availability (Voltage, Phase, Frequency)
Installation format (Indoor skid vs. Containerized enclosure)
