PSA Oxygen Generator
High-pressure adsorption and atmospheric
pressure desorption
Occupy a small area:
It occupies a small area, saves space and is suitable for small hospitals.
Cost-benefit:
The price is competitive, the cost cycle is short, and it is equipped with an intelligent
system to improve operational efficiency.
Modular design:
It can be configured with the required compressor and placed at any position.
Technical specification
| Oxygen production | 20L-80L |
| Oxygen concentration | 90%-96% |
| Oxygen output pressure (Mpa) | 0.3Mpa - 0.6Mpa |
| Energy consumption | 1.3kW-1.5kW |
| Voltage power consumption AC | 220V/50Hz,15KW |
| Intake air temperature (℃) | ≤45℃ |
| Noise | ≤85dB(A) |
Product introduction

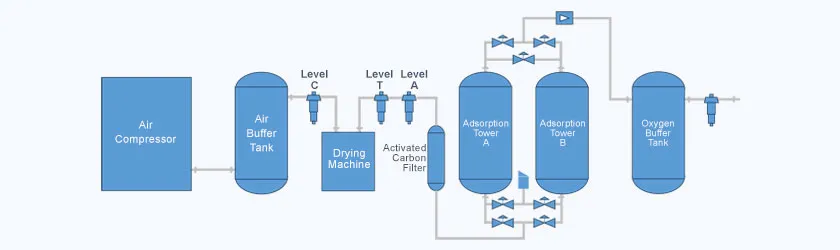

A PSA oxygen generator is a device that uses pressure swing adsorption technology to extract high-concentration oxygen from the air. It is widely used in medical, industrial, environmental protection and other fields. Pressure swing adsorption technology extracts high concentrations of oxygen by selectively absorbing nitrogen from the air using an adsorbent (usually a zeolite molecular sieve) at different pressures.
Product features
Various Oxygen Output Specifications
This series of PSA oxygen generators provide a variety of gas production specifications from 1Nm³/h to 6Nm³/h, and can flexibly adapt to different oxygen consumption scenarios from medical institutions, small factories to medium-sized industrial projects.
High Concentration Oxygen Output
The PSA oxygen generator uses 13X high-performance molecular sieve to stabilize the output oxygen concentration between 90.0% and 96.0% (ml/ml), which meets medical oxygen standards.
Wide Operating Pressure Range
All models of pressure swing adsorption oxygen concentrators support oxygen output pressures of 0.3MPa~0.5MPa and are compatible with various terminal oxygen interfaces (ventilators, surgical centers, industrial combustion systems, etc.) without the need for additional pressurization devices.
FAQ
How to choose a suitable PSA oxygen generator?
Factors such as production capacity, purity requirements, usage environment, etc. need to be considered when selecting. Our sales team can recommend the most suitable products and prices based on your specific needs.
What is the price range of pressure swing adsorption oxygen concentrators?
Prices vary based on model, capacity, purity and other factors. As a pressure swing adsorption oxygen concentrator manufacturer, we provide products at a variety of price points to meet the budget needs of different customers.
Where can I buy a high-quality pressure swing adsorption oxygen concentrator?
You can buy directly from our factory. As a professional PSA oxygen generator manufacturer, we provide high-quality products and complete after-sales service.
