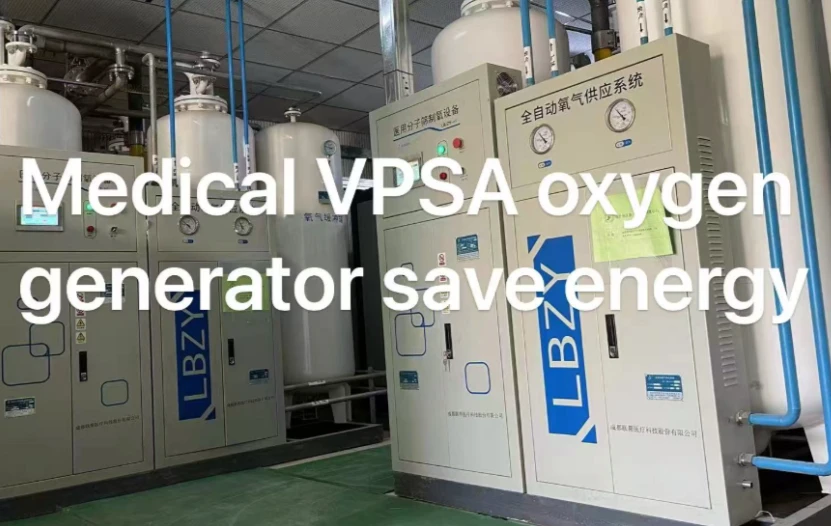

Undersize your hospital oxygen plant and you get chronic low-pressure
alarms, cancelled surgeries, and a biomedical engineering team that knows
exactly which supplier to call at 3 AM. Oversize it and you've spent
capital on capacity nobody uses, while the oversized equipment churns
through electricity running at partial load below its efficiency sweet
spot.
Getting the sizing right is both critical and straightforward - if you
know which numbers to use and which rules of thumb to ignore. This guide
covers oxygen demand calculation, system sizing, redundancy planning, and
technology selection for hospitals from 200 to 1,200 beds.
Step 1: Calculate Your Oxygen Demand
Design Flow Rate
Design Flow (Nm3/h) = Total Connected Beds x Flow per Bed x Simultaneity
Factor
Flow per bed values (from HTM 02-01 and ISO 7396-1):
- General ward bed: 5 L/min (0.3 Nm3/h)
- ICU bed: 20 L/min (1.2 Nm3/h)
- NICU bed: 10 L/min (0.6 Nm3/h)
- Operating theater: 40 L/min (2.4 Nm3/h)
- Emergency department bay: 15 L/min (0.9 Nm3/h)
The simultaneity factor accounts for the reality that not every bed uses
maximum flow simultaneously:
- General wards: 10-20 percent of beds at full flow simultaneously
- ICU: 75-100 percent
- NICU: 50-75 percent
- Operating theaters: 75-100 percent
Worked Example: 500-Bed Hospital
Bed mix: 400 general ward, 40 ICU, 20 NICU, 10 operating theaters, 30 ED
bays.
- General wards: 400 x 0.3 x 15% = 18.0 Nm3/h
- ICU: 40 x 1.2 x 90% = 43.2 Nm3/h
- NICU: 20 x 0.6 x 75% = 9.0 Nm3/h
- Operating theaters: 10 x 2.4 x 85% = 20.4 Nm3/h
- ED: 30 x 0.9 x 40% = 10.8 Nm3/h
- Total design flow: 101.4 Nm3/h (round to 105 Nm3/h)
Note: ICU demand dominates despite representing only 8 percent of the beds.
Step 2: Add Your Buffers
N+1 Redundancy
Standards universally require N+1 redundancy: the system must meet 100
percent of design flow with the single largest unit out of service. For
105 Nm3/h design flow, this could be 2 x 105 Nm3/h (each individually
meets design flow), or 3 x 55 Nm3/h (any 2 units = 110 Nm3/h).
Future Expansion Capacity
Add 25-30 percent to the calculated design flow for future expansion. Our
105 Nm3/h x 1.3 = 136.5 Nm3/h. So we're looking at a dual-unit system with
each unit capable of 70 Nm3/h, providing 140 Nm3/h total capacity with
full N+1 redundancy.
Backup Supply
Plan for a backup oxygen supply - either a LOX tank at minimum fill or a
cylinder manifold sized for 24 hours of reduced-demand operation. This
covers the scenario where both generators are simultaneously unavailable.
Step 3: Technology Selection by Hospital Size
Under 100 Beds (less than 20 Nm3/h)
Options: PSA generator or cylinder manifold. VSA becomes cost-effective at
higher flow rates. One dual-unit PSA handles most facilities in this
range. Back up with cylinder manifold.
100-300 Beds (20-60 Nm3/h)
Sweet spot where on-site VSA generation starts making decisive economic
sense. Dual-unit VSA provides operating costs 35-45 percent lower than
equivalent PSA over 10 years. Recommendation: VSA as primary, LOX or
cylinder manifold as emergency backup.
300-800 Beds (60-160 Nm3/h)
VSA is the clear economic winner. Dual-unit installation sized for N+1
redundancy with 30 percent expansion buffer. Containerized VSA options
simplify installation. Recommendation: VSA as primary, LOX at minimal fill
as backup.
800-1,200 Beds (160-250+ Nm3/h)
LOX economics can compete with VSA at very high flow rates. Run a detailed
TCO comparison with local pricing. Consider hybrid: VSA for base load, LOX
for peak demand and backup.
Quick Reference: Sizing by Bed Count
These are planning estimates only. Always calculate your actual design
flow:
- 200 beds: ~40 Nm3/h design flow, dual-unit VSA 2 x 30 Nm3/h
- 300 beds: ~60 Nm3/h, dual-unit VSA 2 x 40 Nm3/h
- 500 beds: ~105 Nm3/h, dual-unit VSA 2 x 70 Nm3/h
- 800 beds: ~170 Nm3/h, dual-unit VSA 2 x 110 Nm3/h or 3 x 60 Nm3/h
- 1,200 beds: ~250 Nm3/h, run detailed TCO; consider VSA + LOX hybrid
The Mistake Most Hospitals Make
The most common error: assuming the current bed count represents the
permanent facility size. Hospitals expand. ICU capacity increases. The
oxygen plant you install today will serve a larger hospital tomorrow.
Build the 30 percent expansion buffer into your design. It's the cheapest
capacity you'll ever buy - because buying it later, as a retrofit, costs 2-
3x more per Nm3/h than including it in the initial installation.
